Specifications and Dimensions
|Incandescent or LED||LED||Material||PVC|
|Rope Light Size||13mm (1/2")||Maximum Connection||150 feet|
|Bulb Color||See Product Description||Connection||2-Wire, Power connector with attached male plug must be installed on each run of light|
|Tube Color||See Product Description||Warm Up During Operation||No|
|Rope Bulb Count||1800||Dimmable||No|
|Rope Socket Spacing||1" Bulb Spacing||Fuse||5A/125V|
|Total Length||150 feet, approx.||Watts||.73W/foot|

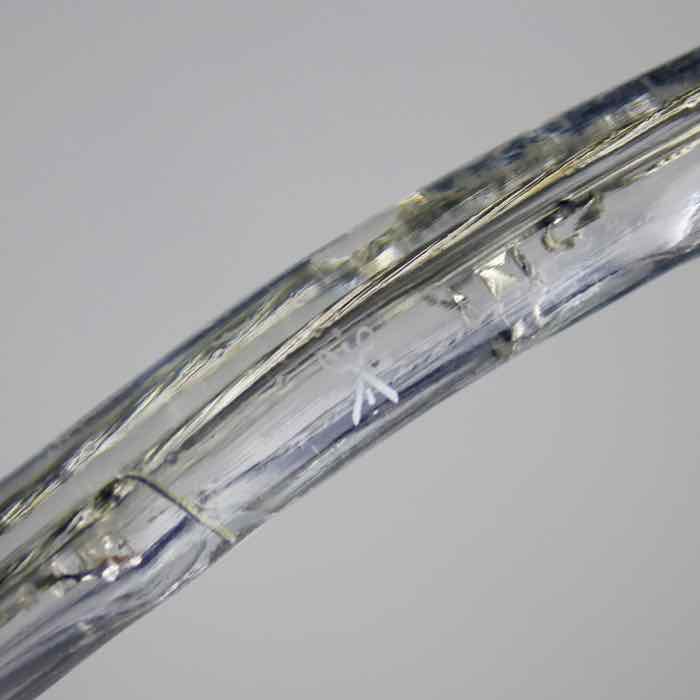

|Minimum Rope Length||Cut in 54" lengths at cut-marks.||AMPS Usage||1.34A/150 feet|
|Includes||One power cord installed at end of rope light and 3 additional kits (power connectors, cords, end caps, clips)||What if a bulb burns out?||If a bulb fails, remaining bulbs should stay lit. If a section fails, replace it by splicing in a new section of rope light. Length of section determined by cut-marks.|

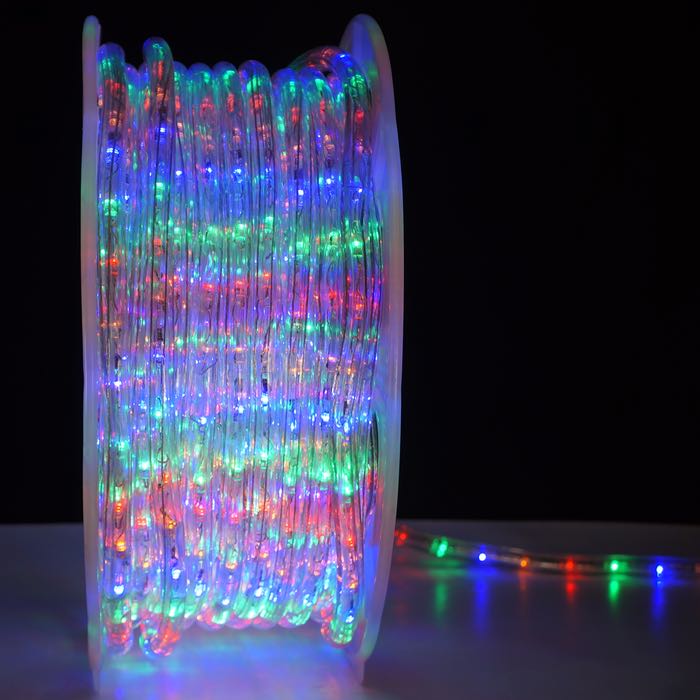

|Package Style||Bulk Spool||Diameter||1/2 inch|
|Application||Indoor/Outdoor||Potential Lifespan Estimate||50,000 hours|

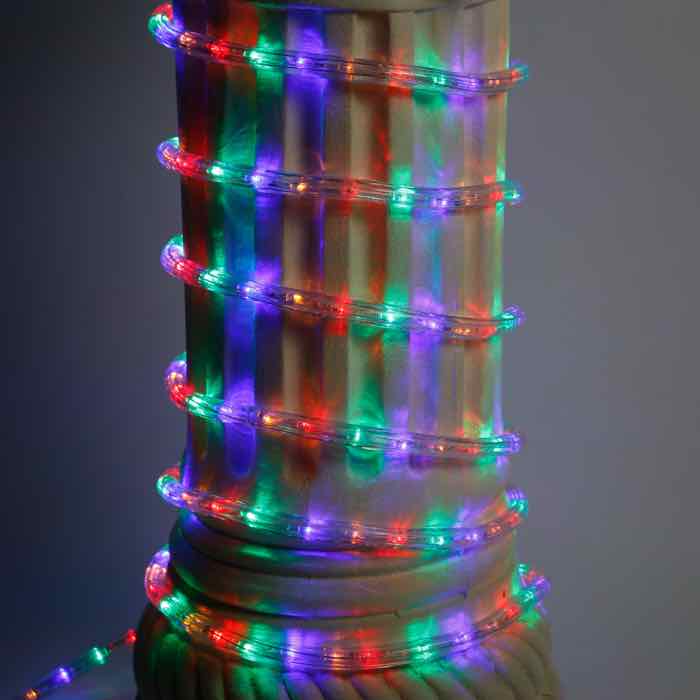

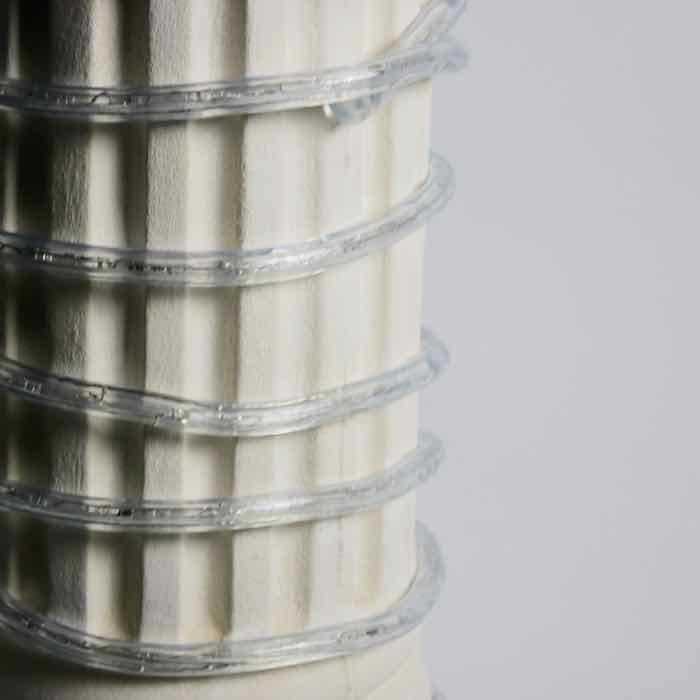

|Additional Info||Floating connectors. This rope light can be wrapped around small columns but bending too small of a radius can interrupt the electrical connections.||Warranty||90 Days of Normal Seasonal Use|
|Additional Info||Steady Burn Only; Temperature resistant from -68 to +140F; Withstands up to 220 PSI.||Additional Info||UV Stabilized|
|Handy Guide||Assembly Instructions||Additional Info|
For CA Residents: Prop 65 Notice

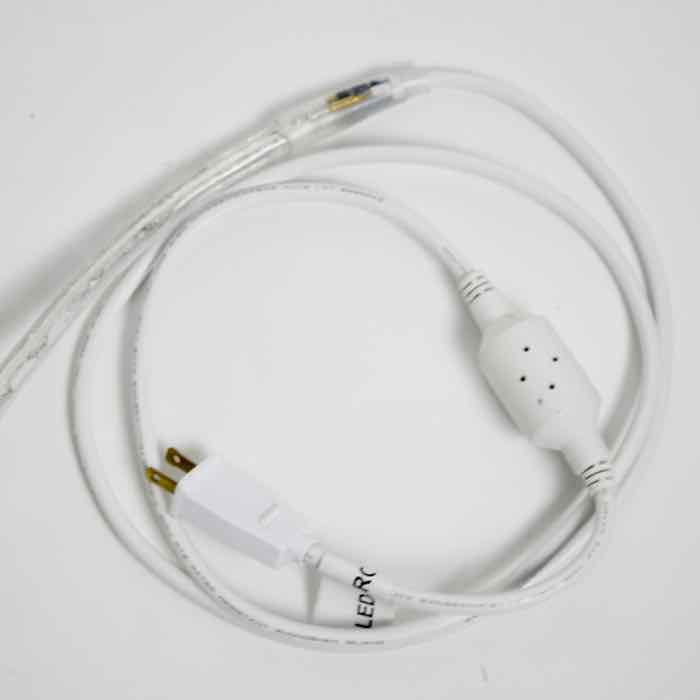

- One installed power cord
- 3 additional power cords
- 3 power connectors
- 3 splice connectors
- 30 rope light clips
The connections in rope light are floating and if the rope is coiled at too tight an angle, the connection may be broken. If that should occur, gently ease the bend out of the rope light to possibly rejoin the connections. Also, excessive force used to straighten the rope may break connections along the line.
Splice connectors are included to replace unlit sections. Plug into an outdoor-rated surge protector.
Lights are great ! The only problem is that the instructions do not give enough information. For example, When you connect the electric plug assembly where the run ends, they do not light. they do not tell you that it only works from the beginning end of the rope light. I connected at the opposite end and the lights did not work no matter what I tried. After some investigation on the internet. I connected the lights at the beginning end (start of the roll) and they worked fine. They look really good on my house and I would definitely recommend this product. Just need a little more info for the Do It Yourself home owner.
