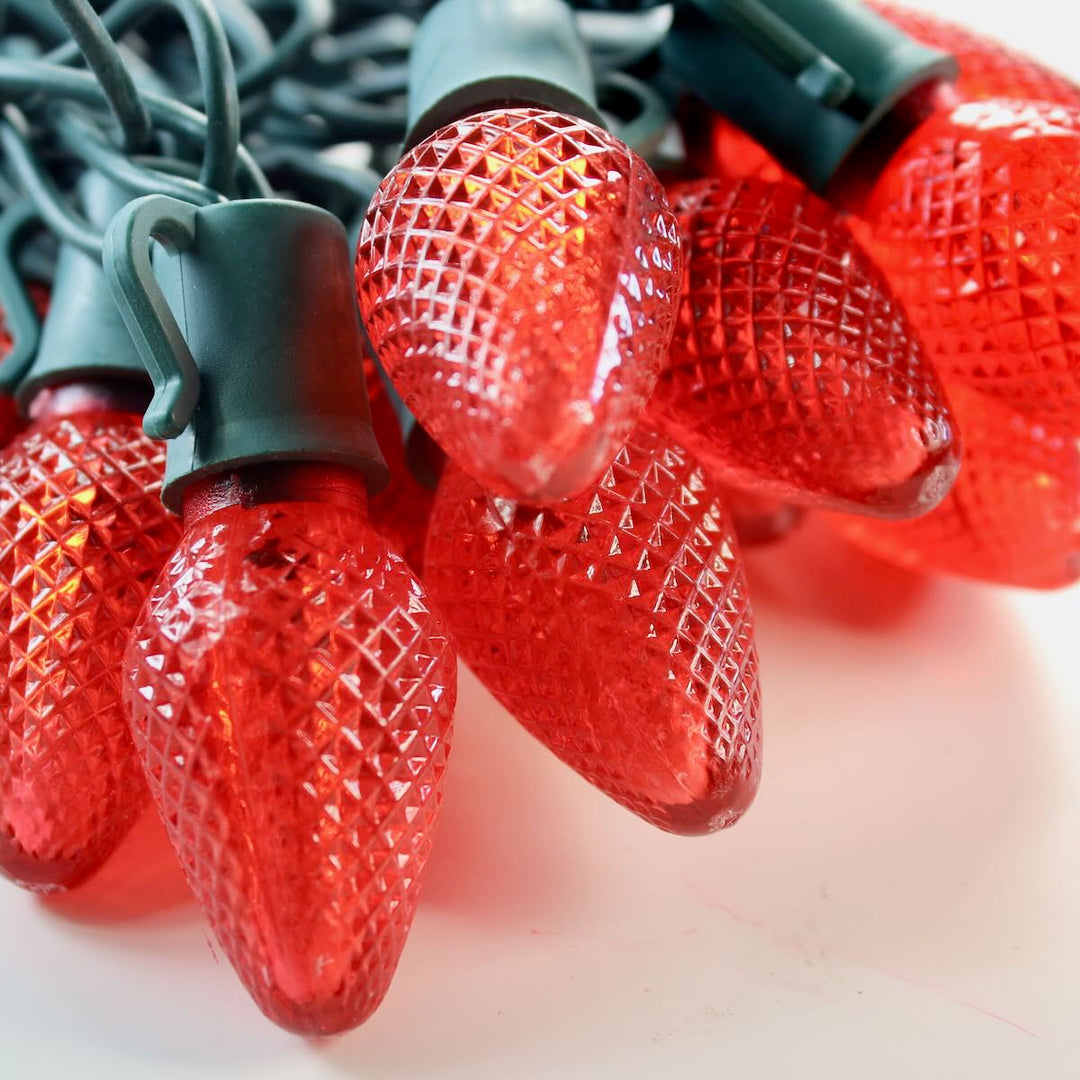

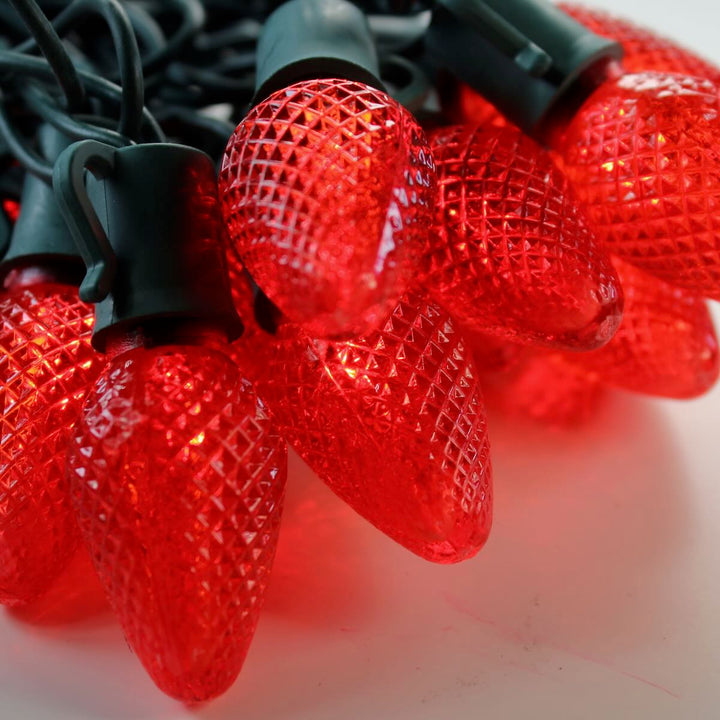

C7 Red LED Christmas Lights
C7 Red LED Christmas Lights
C7 Red LED Christmas Lights
C7 Red LED Christmas Lights

C7 Red LED Christmas Lights

Price: $12.79
Unit price  per
SKU: LED-78302R-PB24
Shipping calculated at checkout.

These LED light strings are constructed with a 3-wire 22-AWG low-current wiring harness. The C7 lenses are sealed into their bases making them moisture resistant.

    This string of lights has 25 LEDs spaced 8 inches apart translating to just under 16 feet of lit length. The total length of the strand is 16. 6 feet. The closer spacing provides maximum LED light along your walkways or lighting your Christmas tree.

    Run up to 87 sets in series.

    Details

    • LED
    • Polycarbonate (plastic) lenses
    • UL Rated, Indoor/Outdoor projects
    • Fully rectified at the beginning and middle of each string to minimize flicker
    • Bulbs permanently installed to resist corrosion and water


    Specifications
    Incandescent or LED LED Maximum Sets Run in Series 87 Sets
    Color of Bulbs Red Certification(s) UL Approved
    Color of Wire Green Warm Up During Operation No
    Number of Bulbs 25 Plug Type Male (Stackable)/Female
    Spacing between bulbs 8 inches Dimmable No
    Bulb Shape C7 Maximum Current 3 Amps
    Replaceable Bulbs No Voltage 110V/120 V
    Total Length 16 feet 6 inches, approx. Power 2.4 Watts
    Lit Length 16 feet, approx. Current Draw .02 Amps

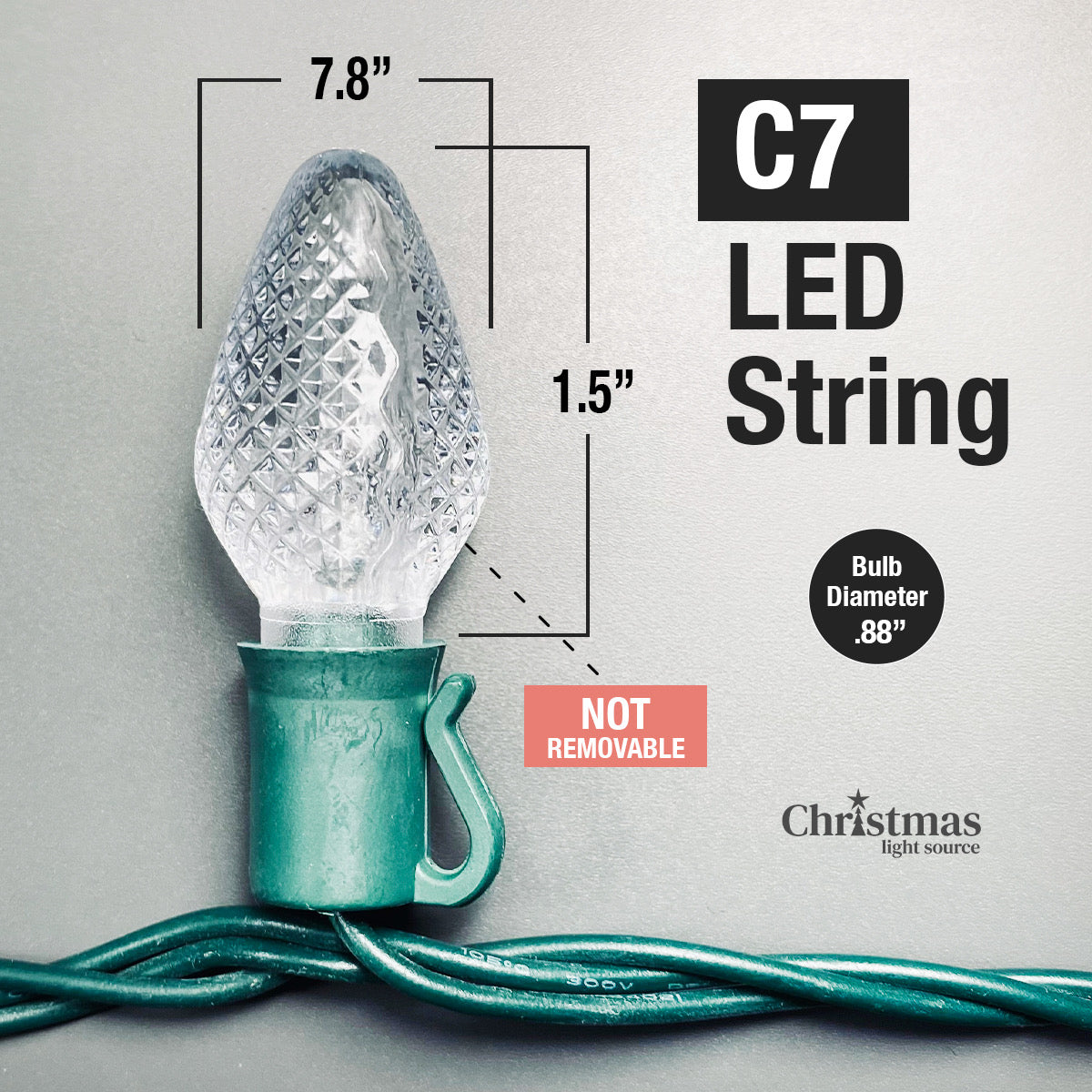

    Lead Wire Length (Distance between male plug and first light) 4 inches Bulb Height 1 1/2 inch
    Tail Wire Length (distance between last bulb and female plug) 4 inches Bulb Width 7.8 inch
    Gauge of Wire 20 AWG Bulb Diameter .88 inch
    Included Replacements 2 Fuses Potential Lifespan Estimate 50,000 hours
    Application Indoor/Outdoor Warranty 90 Days of Normal Seasonal Use
    Additional Info Bulbs cannot be removed, replaced, or exchanged between sets Additional Info Fully Rectified
