How LED Christmas Lights Are Wired
If you’ve ever tried to troubleshoot a string of LED Christmas lights, you’ve probably noticed they don’t behave like the old incandescent sets many of us grew up with. That’s because LEDs are wired differently—and for good reason.
Below is a simple, decorator-friendly explanation of how LED Christmas lights are wired, why manufacturers design them this way, and what it means for reliability and safety.
The big difference: LEDs vs. incandescent lights
Incandescent strings are relatively simple: each bulb is part of a continuous circuit powered directly by household voltage. Before mini light manufacturers installed a shunt wire, if one bulb went out the rest could bo out. If a bulb is removed, the rest of the circuit will typically go dark. See more about that topic: If one bulbs goes out, will the rest go out?
LED Christmas lights are engineered differently:
- They use light-emitting diodes instead of filaments.
- They operate at low voltage DC, not household AC.
- They’re built as small series sections with multiple parallel paths.
- They include internal components that convert and regulate power.
This is also why LED light strings run cooler, even after hours of use. Unlike incandescent bulbs, which create light by heating a filament, LEDs convert more energy directly into light and produce far less heat.
LED strings convert AC to DC
LED strings still plug into a standard 120V AC outlet, but LEDs can’t use that power directly. All sets include a rectifier (to convert AC to DC), plus small components that help limit, filter, and stabilize current. If a set has twinkle or chase functions, it may also include a controller.
LEDs are grouped into series sections
Instead of wiring every LED into one long chain, manufacturers divide the string into small series circuits. Each series section contains a handful of LEDs and is designed for a specific voltage drop.
Those sections are then wired in parallel with each other. That combination is one of the reasons LED strings are so reliable.
In plain English: the string is built from multiple “mini-circuits.” If one LED fails, it usually affects only its small section—not the entire string.
Polarity matters
LEDs are diodes, which means they only allow electricity to flow in one direction. That’s why LEDs have a positive and negative side, and why their internal design is more “directional” than incandescent bulbs.
Built-in safety and control components
Most LED light strings include safety and performance features like current limiting, fuses in the plug, and insulation rated for indoor/outdoor use.
Why LED strings are sometimes not as "repairable" as traditional sets

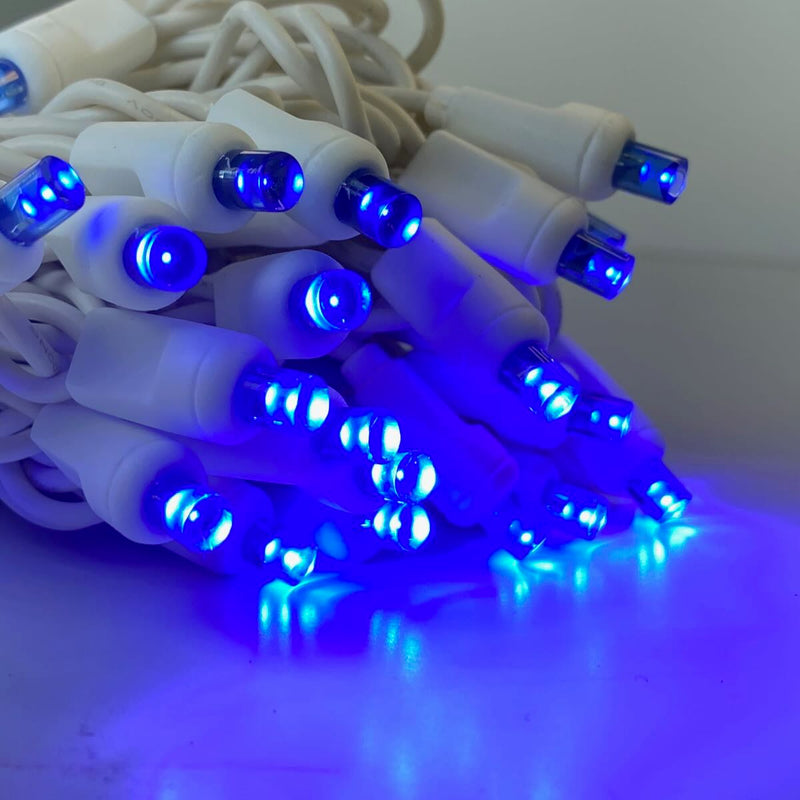

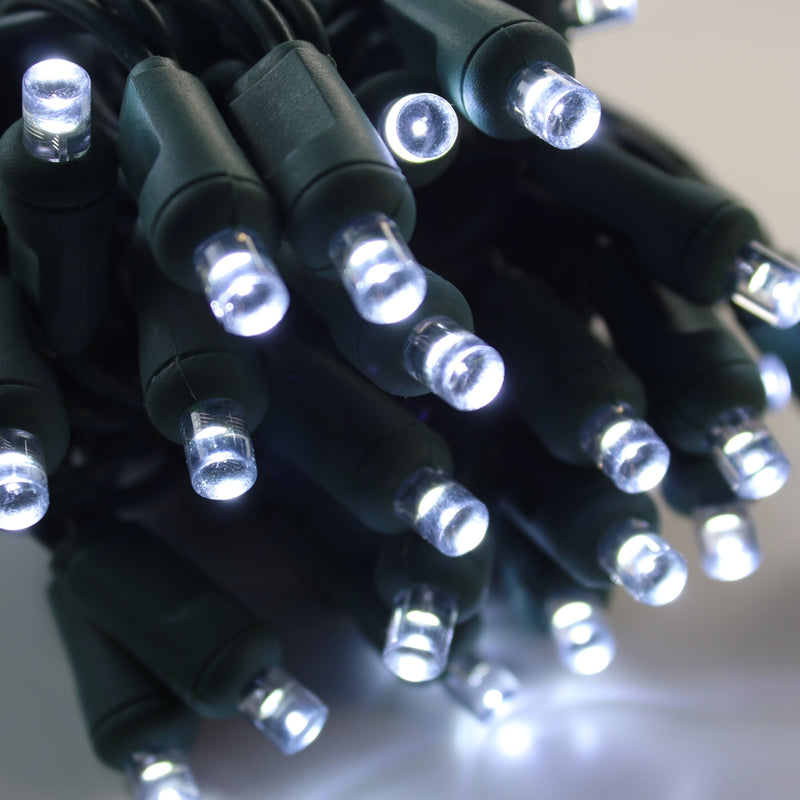

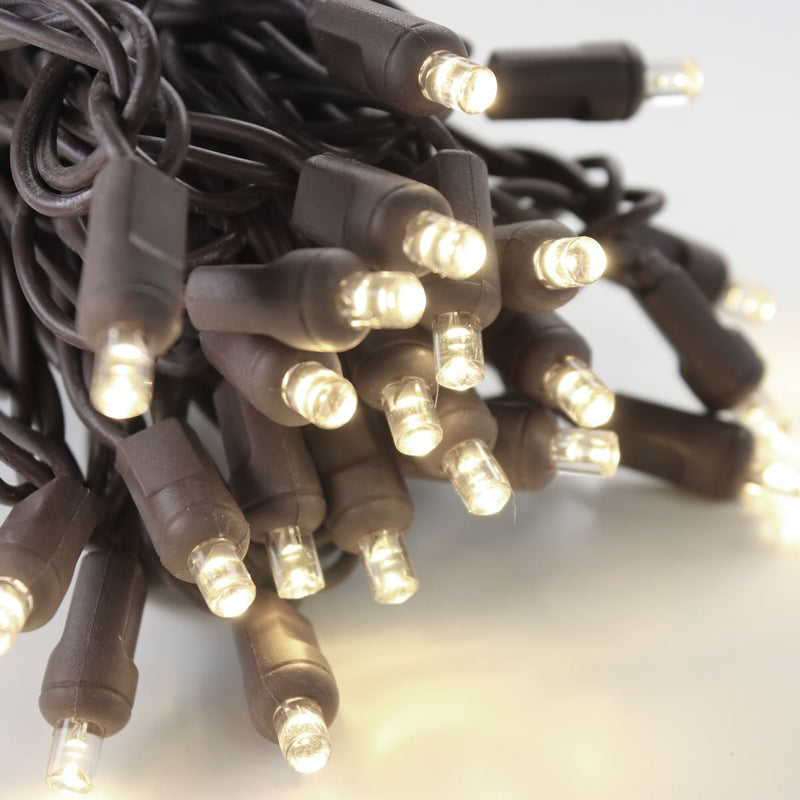

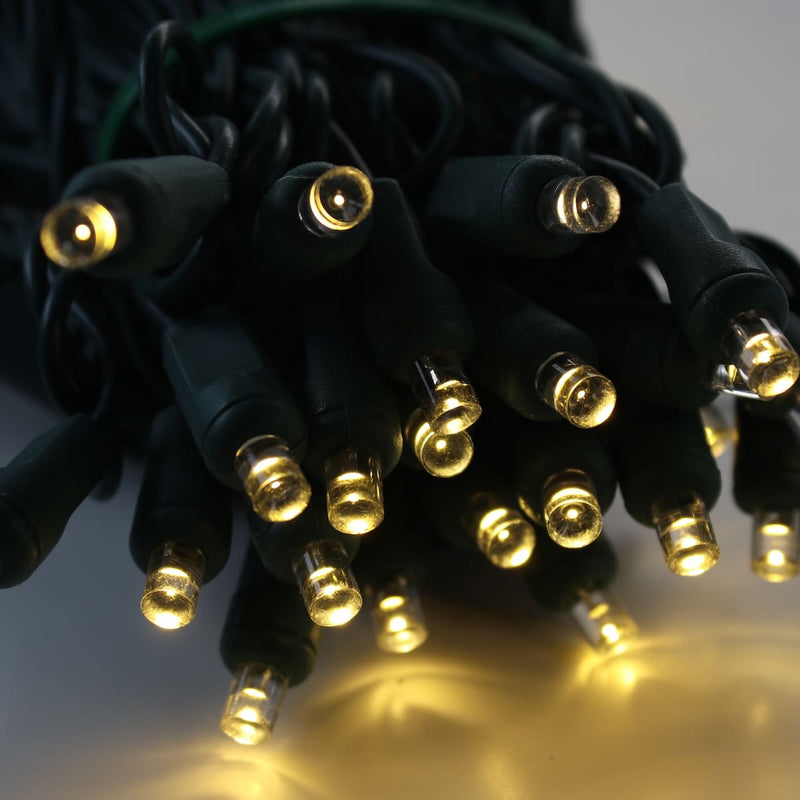

With incandescent strings, one damaged bulb could be easily replaced. Newer, higher quality LED sets are often sealed to help protect against moisture. They are also constructed so the lenses/bulbs are non-removeable.
This innovation allows the LED strings to run with ultra low current so 100's of feet can be run end to end in a series. The only catch is that a defective bulb can't be replaced. The good news is that it rarely effects the other bulbs.
What this means for decorators
- LED strings use far less electricity.
- They run cooler and are typically safer for long runtimes.
- They’re designed so a problem is often isolated to a section.
- They’re less friendly to “repair-by-bulb-swap,” depending on the set.
Final thoughts
LED Christmas lights may look simple from the outside, but they’re carefully engineered systems designed for efficiency, safety, and longevity.
Frequently asked questions
Can you connect LED strings from different manufacturers end-to-end?
Technically yes, but it's not always recommended. Different manufacturers may use different internal voltage configurations, current limits, or safety ratings. When possible, stick with the same brand and product line for a run. If you do mix brands, stay well under the maximum connection limits specified by each manufacturer.
Why do some sections of my LED string stay lit while others go dark?
This is actually evidence of good design. Because LED strings are wired as multiple series sections in parallel, a failure in one section doesn't affect the others. The dark section likely has a single failed LED or connection issue, while the parallel sections continue working normally.
Do all LED Christmas light strings work the same way internally?
The basic principle is the same—series sections wired in parallel with AC-to-DC conversion. However, quality varies significantly. Higher-end sets may include better rectifiers, more robust current limiting, superior waterproofing, and more reliable LED chips. Budget sets often cut corners on these components, which can affect longevity and performance.
Can LED light strings be repaired if a section goes out?
Most modern LED strings are sealed units with non-removable bulbs, making traditional bulb-by-bulb repair impractical. This design trade-off allows manufacturers to create more energy-efficient, weather-resistant strings. The upside is that failures are usually isolated to small sections rather than taking out the entire string.
Why do LED strings sometimes flicker or dim at the end of a long run?
This typically indicates voltage drop across the wire. Even though LEDs use low power, resistance in the wire increases over distance. If you're connecting multiple strings end-to-end, the sets farthest from the power source may receive slightly lower voltage. Always follow the manufacturer's maximum connection guidelines to avoid this issue.
